NEW Chevalier FBL-520 Slant Bed CNC Lathe

Capacity

Swing Over Bed:  .................................   40.50”

Swing Over Cross Slide  .......................   31.49”

Maximum Turning Diameter:  ...............   37”

Maximum Turning Length....................... 78”

Distance between Centers...................... 78”

Headstock

Spindle Nose..................................... A2-20

Through Spindle Hole Diameter.......... 15” (D)

Spindle Speeds.................... 500 rpm

Spindle Motor....................... 60 HP

Transmission............ D model: 2-speed Gear

Maximum torque....... C model: 9,000 NM@60 rpm

Turret

Turret Tools..........12 Station

Transmission............. Bi-directional servo indexing

Index Time................ 0.35 sec

Clamping way............ Hydraulic clamp with curvic coupling

Clamping pressure......15,188 kgf

OD Shank.................. 1.25”

Diameter of Boring Bar.2.5".STD / 3.0” opt

Travel

X Axis........................ 19.29”

Z Axis........................ 78”

Feed motor X Z Axis.......... 9kw

X Z Axis Rapid Feed rate....394/472ipm

Tailstock

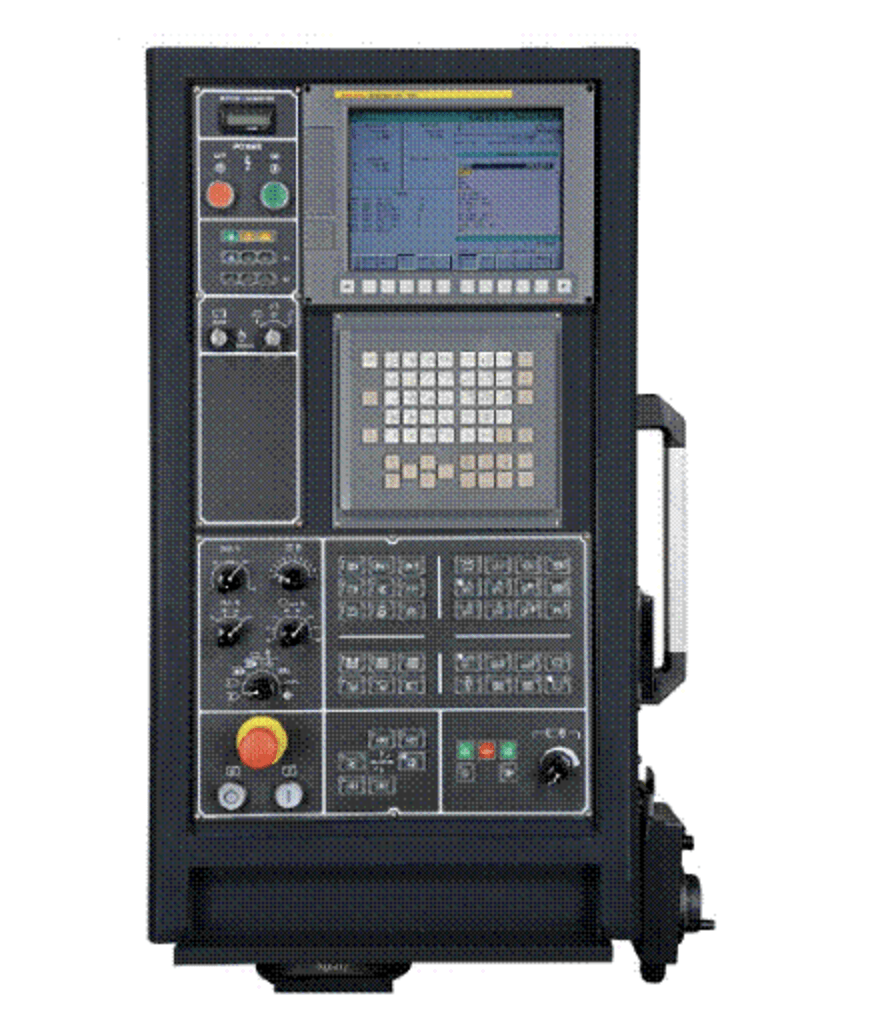

Control............ Programmable position / quill

Travel (w/o Steady Rest).......... 78”

Quill Travel.............................. 3.94”

Quill Diameter......................... 7.87

Quill Taper.............................. MT6

Rotary Quill

General Information

Slide way Slant............. 45˚

Coolant Pump................ 1.6HP/ 90 PSI

Machine Dimensions w/ conveyor (LxWxH)..................... 300“ x 117“ x 99.6“

Machine Weight........... 47,500 lbs

 Investment Cost

 Model: FBL-520D

IN Stock Houston,TX
