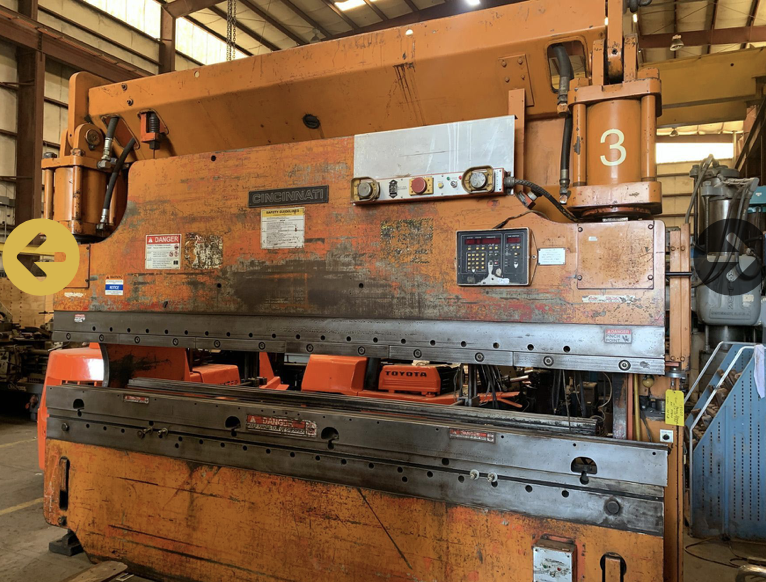

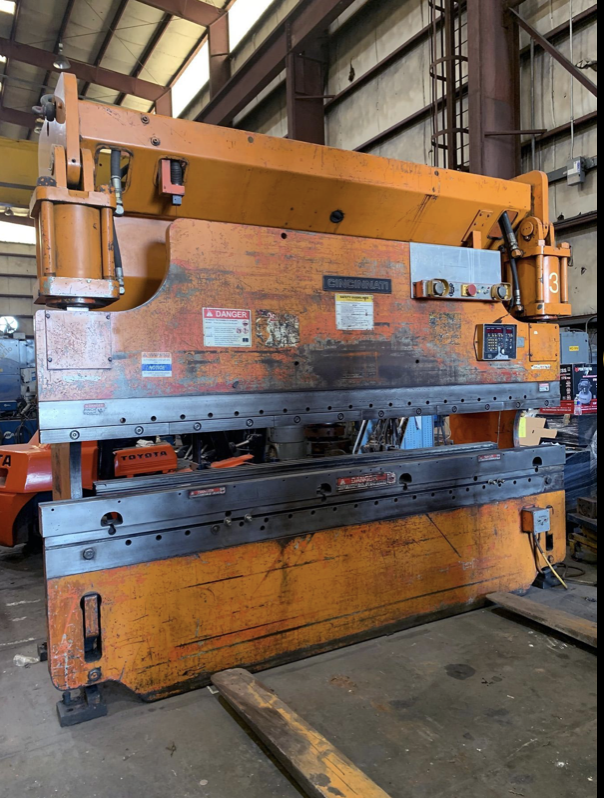

USED, 10' X 175 TON CINCINNATI MODEL 175CB HYDRAULIC PRESS BRAKE

Equipped With

CAPACITY: 175 TONS

DIE LENGTH: 120"

DISTANCE BETWEEN HOUSINGS: 126-3/4"

TOTAL OVERALL DIE SURFACE: 144"

RAM STROKE: 10"

OPEN HEIGHT: 17"

CLOSED HEIGHT: 7"

THROAT: 8"

RAM SPEEDS:

HIGH - 132 IPM

MEDIUM - 65 IPM

LOW - 18 IPM

RETURN - 127 IPM

MOTOR: 30 HP

OAD (LXWXH): 144" X 43-1/2" X 127"

WEIGHT (APPROXIMATE): 24,000 LBS.

EQUIPPED WITH:

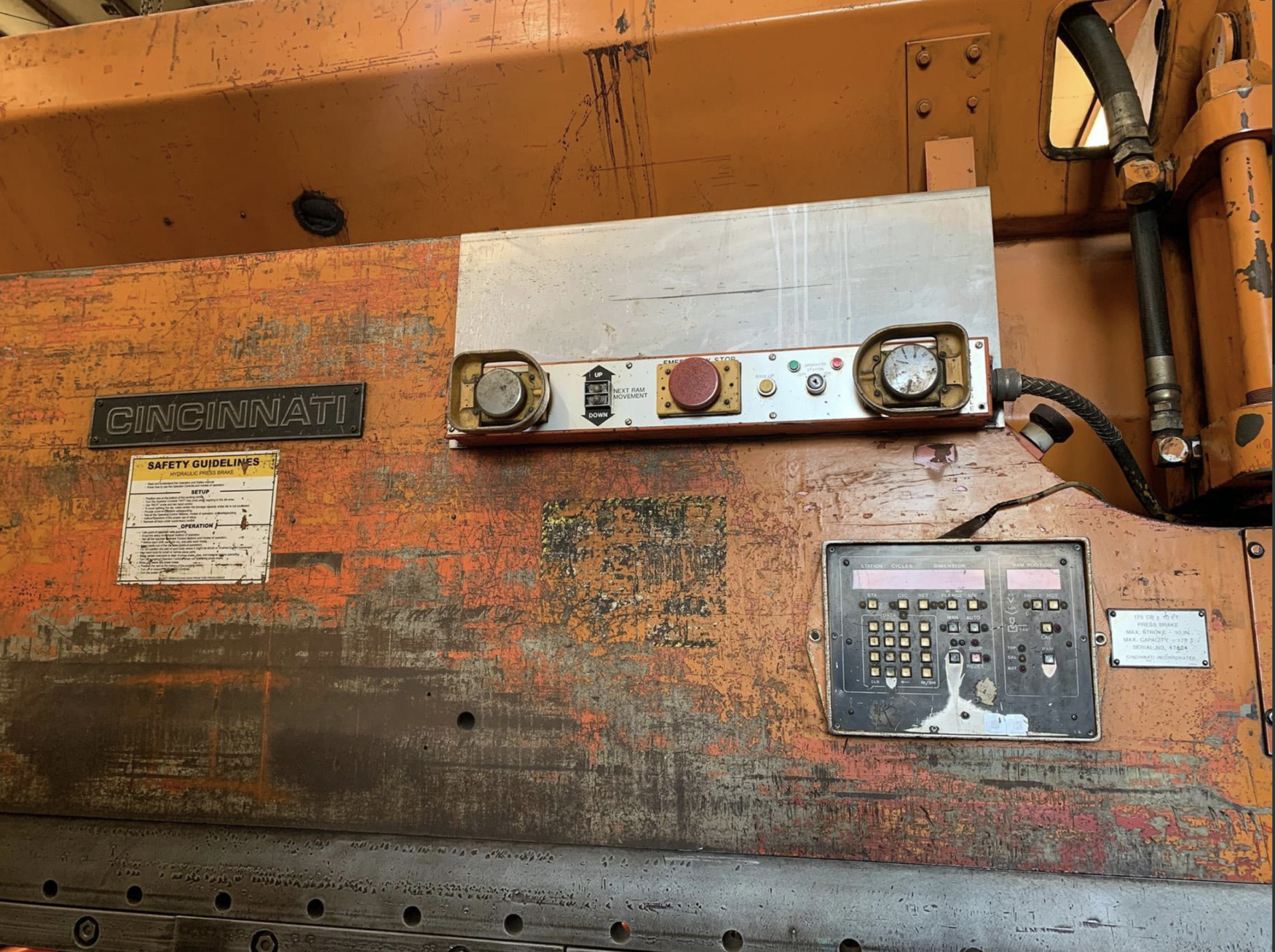

DUAL PALM CONTROL

DIGITAL READOUT
